Oil&Gas

Engineering Division

Engineering Division

Oil&Gas

Thanks to our experience and knowledges, MAN Evotech gives to other companies its own consultant for plan design in Oil&Gas e Power Generation field.

The dedicated Business Unit provides a service to follow, face and sustain customers’ needs, through the multidisciplinary engineering support: feasibility studies, bill of materials, realisation of 3D models and the components’ production.

MAN Evotech ensure managing and execution of projects according to specific targets and international guidelines considering time, costs and quality.

With these activities it is available a simulation service through the analysis of finite elements (FEM).

Application Fields

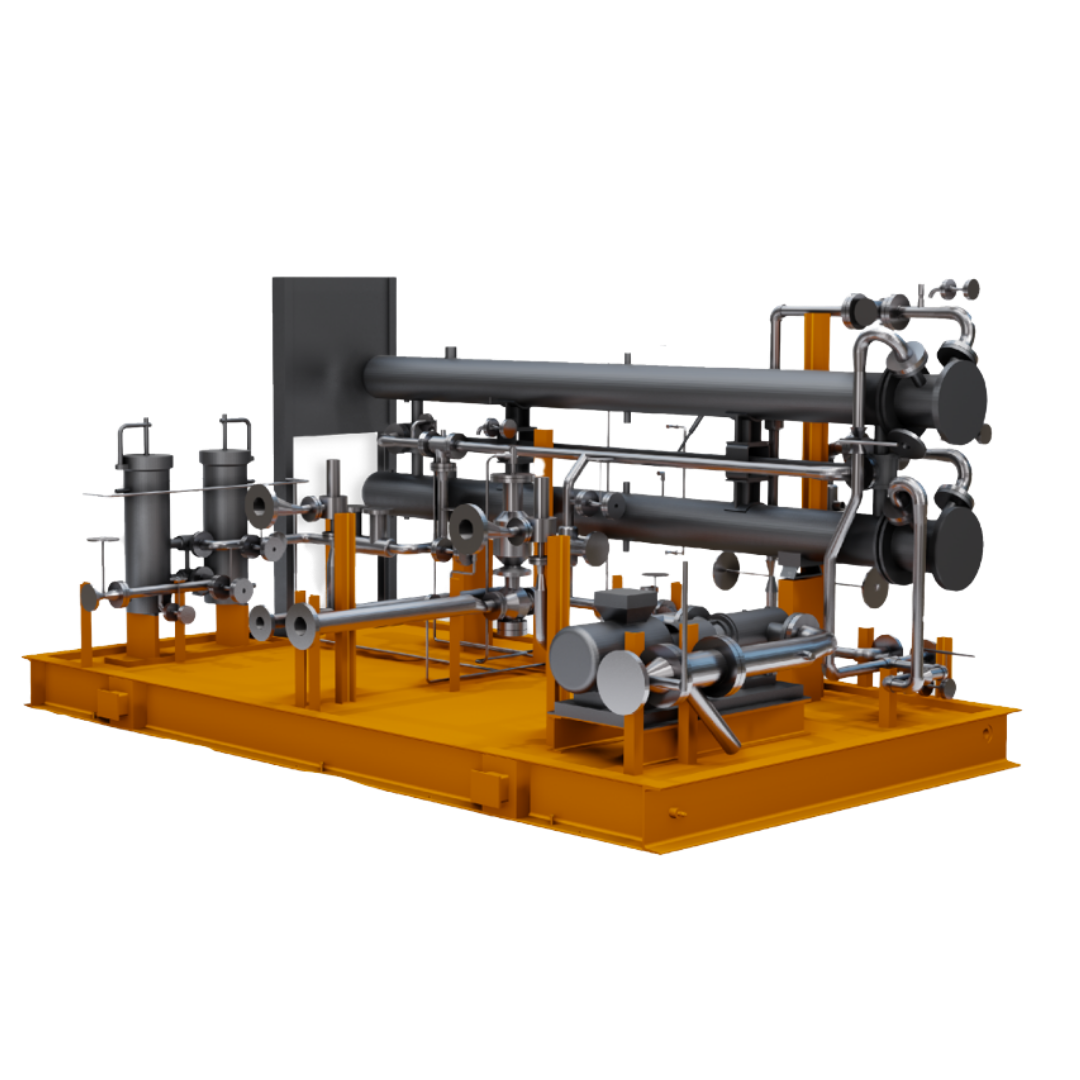

  • Lubrificationprocess

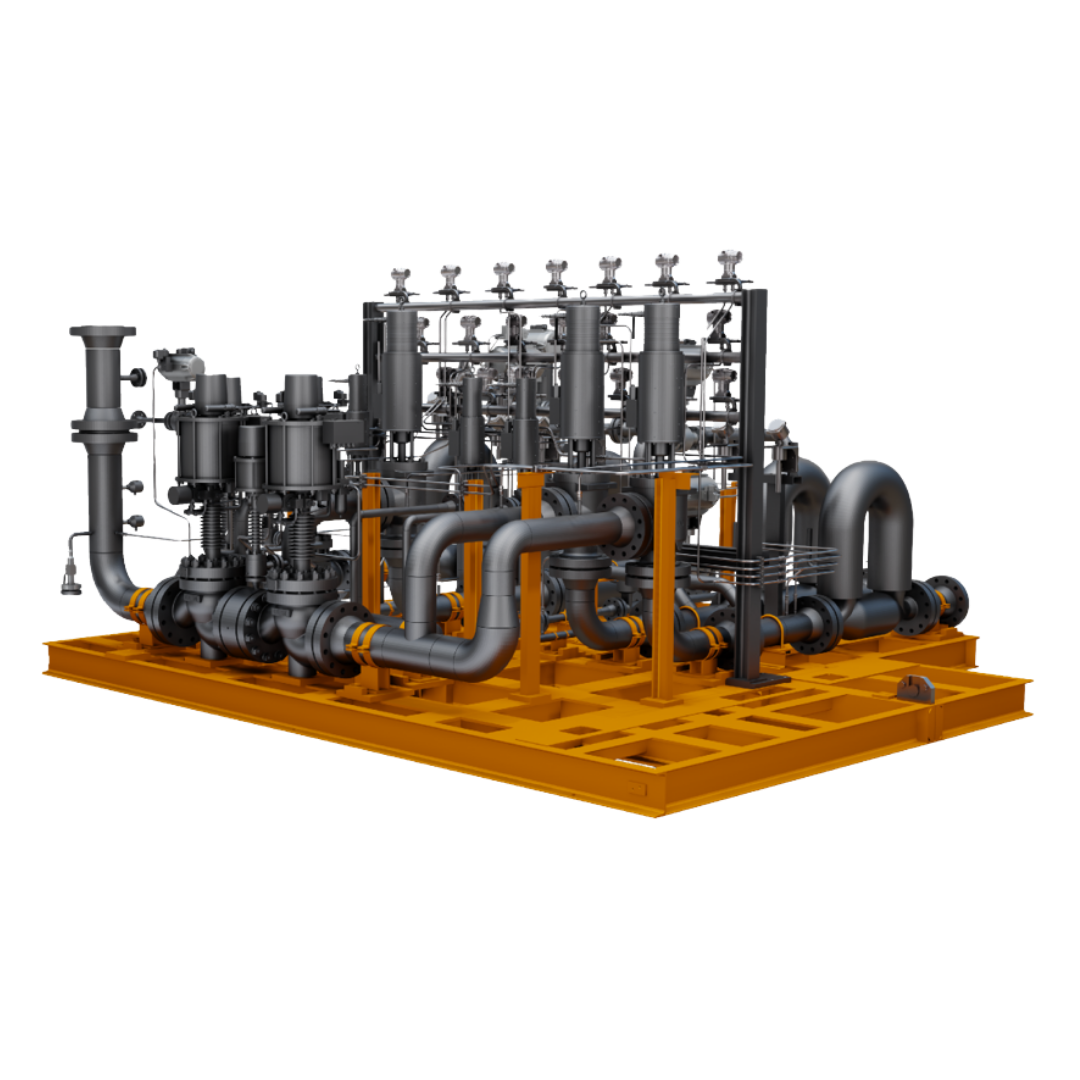

  • Gas Turbine fuel process
  • Gas process
  • Rotating machinery packaging: compressor and turbine
  • Process simulation
  • Structural stress analysis
  • Piping stress analysis
Activities
  • Conceptual Design
  • P&ID’s
  • Structural design
  • Piping design

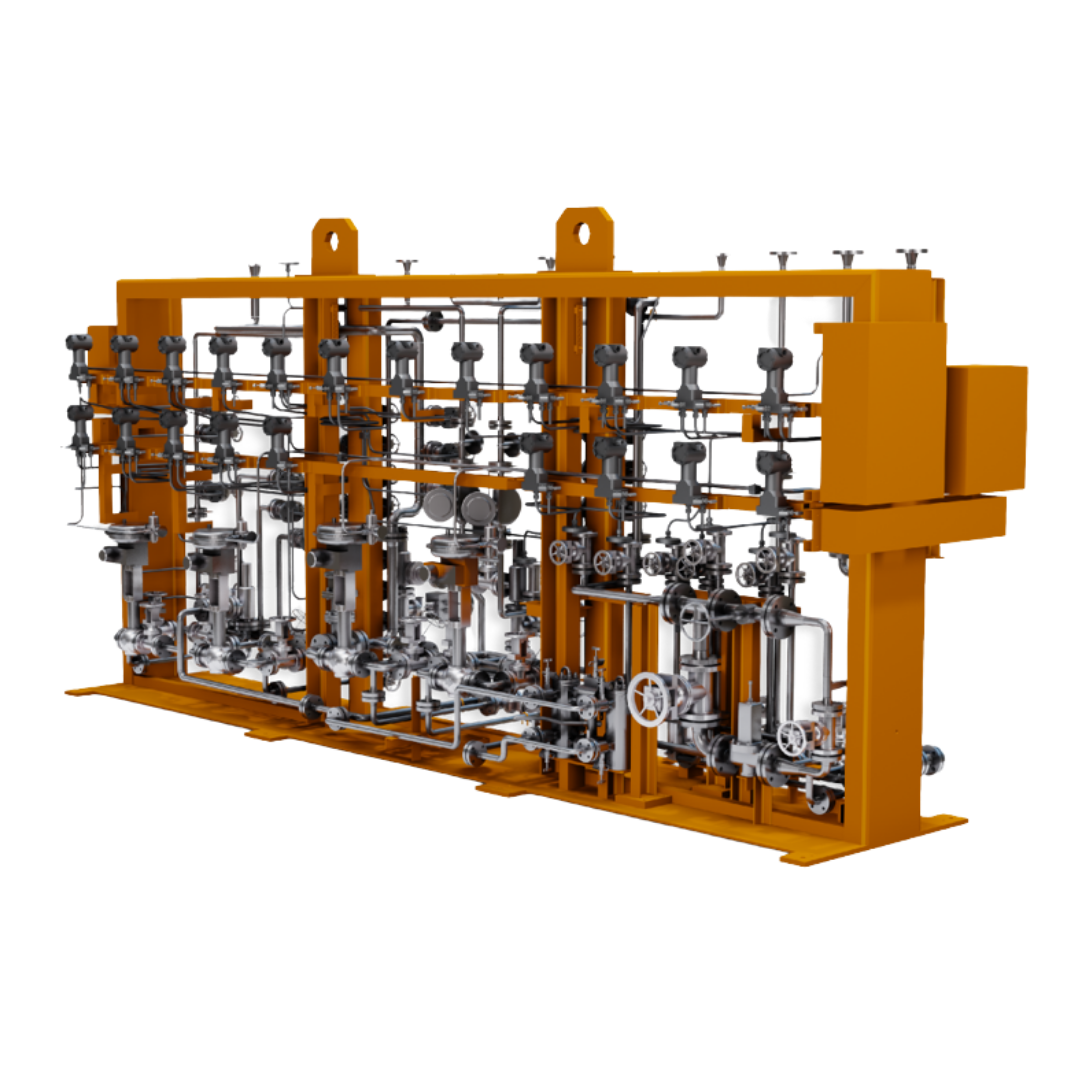

  • Electrical and instruments outline
  • Stress analysis
  • BOM
International Guidelines
  • API 614
  • ASME
  • ISO
  • ATEX
Image Item
Image Item
Image Item
Image Item
Image Item

Design Software Used

logo autodesk autocad
siemens nx
esain esapro
logo_autodesk_inventor
